تفاصيل المنتج:
|
| الجهد االكهربى: | 380V 50Hz 3Phases | حالة: | جديد |
|---|---|---|---|
| ضمان: | سنتان | يكتب: | الإطار الصلب وآلة المدادة |

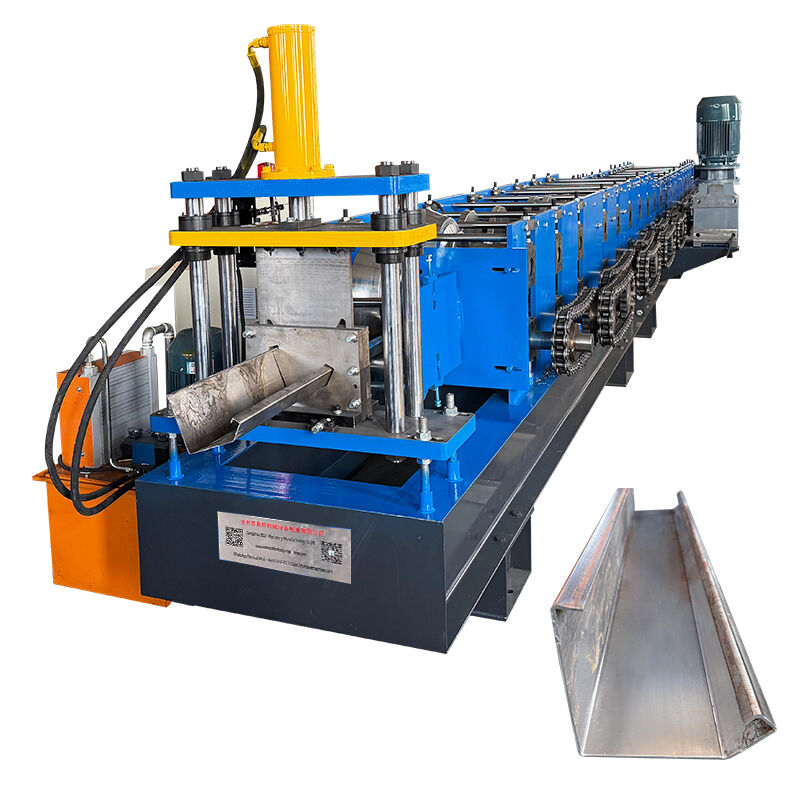

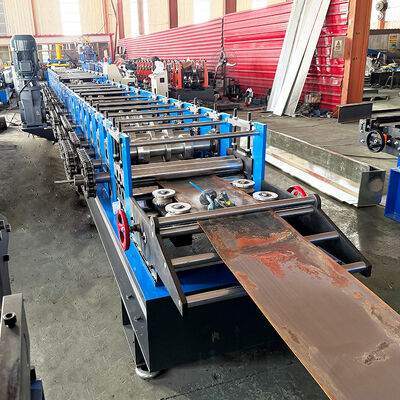

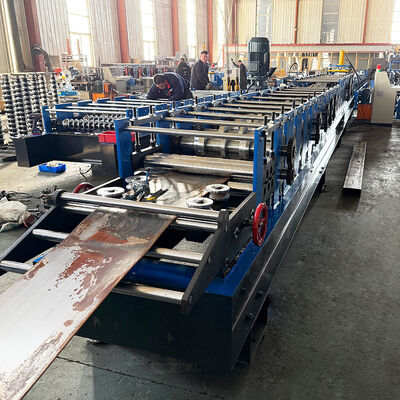

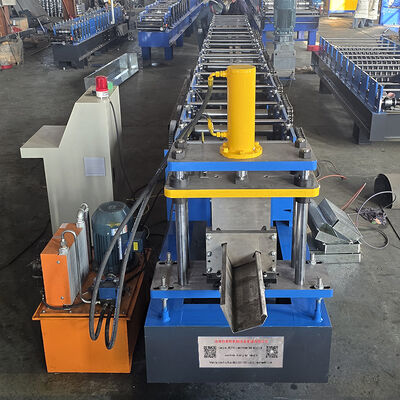

| خدمة ما بعد البيع المقدمة: | المهندسين المتاحة لخدمة الآلات في الخارج | الاسم: | آلة تشكيل المدادة |
| إبراز: | galvanized steel roll forming machine,custom sized profile forming machine,purlin roll forming machine with warranty,custom sized profile forming machine,purlin roll forming machine with warranty |
||
| Component | Specifications |
|---|---|
| Material of Coil | Material Thickness: 2.5-3mm |
| Main Frame | Material: 400H-beam Steel |
| Wall Plate | Welded Steel Plate |
| Reducer | 8# Cycloid Reducer |
| De-coiler | Weight: 3 ton manual decoiler |
| Roll Forming System | Rolling Speed: 0-12 m/min |
| Roller Stations | About 14 stations forming |
| Roller Material | GCR15 Steel with Hard Chromium Plated Surface |
| Diameter of Shaft | 80 Solid |
| Shaft Material | 45# Steel Diameter 80mm Shaft |
| Main Motor Power | 15 kW |
| Hydraulic Cutting Power | 5.5 kW |
| Cutting | Material: CR12 with Quench Treatment |
| Tolerance | ±1mm |
| Cutting Blade | Hydraulic Shearing |
| Electrical Control System | Electric Source: 380V, 50Hz, 3 Phase Control System: PLC (Delta) with Touch Screen |
| Weight | About 6 Tons |
| Way of Drive | By Chain (2.0 inch) Link Bearing Model 6210 |
| Size of Machine | 8.2m × 1.2m × 1.2m |
