تفاصيل المنتج:
|

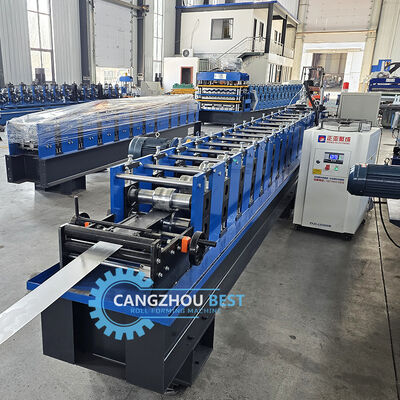

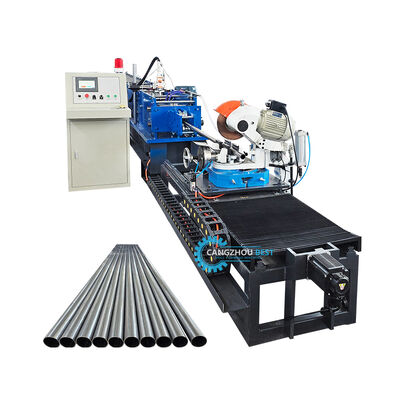

| اسم المنتج: | آلة تشكيل الأنابيب المستديرة بالليزر | نظام التحكم: | بلك |
|---|---|---|---|
| ضمان: | سنتان | حياة: | أكثر من 10 سنوات |
| مادة: | مصطلحات (PPGI/GI) | الإطار السفلي: | فولاذ 360H |
| إبراز: | galvanized steel roll forming machine,round pipe making machine,laser welding roll forming machine,round pipe making machine,laser welding roll forming machine |
||
| Type | Manual Type (Standard) | Hydraulic Type (Optional) |
|---|---|---|
| Width | 500mm | 600mm |
| Capacity | Max 5 tons | 5-15 tons |
| Inner Diameter | φ450-550mm | φ450-550mm |
| Outer Diameter | φ1500mm | φ1800mm |
| Type | Mould Type |
|---|---|
| Blade Material | Cr12mov quenching and grinding |
| Frame Processing | Whole bottom frame grinding for high-precision |
| Blade Processing | Wire-electrode cutting (upper blade not straight - technical requirement) |
| Working Type | Hydraulic |
| Type | Manual | Auto (Optional) |
|---|---|---|
| Length | 2 pieces | 6m or 12m |
| Main Item | Parameter Detail |
|---|---|
| PLC | Delta (standard) or according to request |
| Inverter | China brand (standard) or according to request |
| Touch Screen | Mcgs (standard) or according to request |
| Encoder | China brand (standard) or according to request |
| Voltage/HZ/Phase | 380v/50-60hz/3phase |
| Main Item | Parameter Detail |
|---|---|
| Motor | 3kw China brand or according to request |
| Pump | China brand or according to request |
| Solenoid Valve | China brand or according to request |
| Cooling System | Cooling fan |
