تفاصيل المنتج:
|

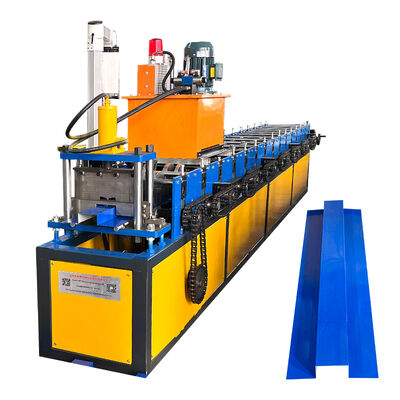

| اسم المنتج: | آلة تشكيل الميزاب الهيدروليكية للقطع K | أبعاد الآلة: | 9 م × 1.4 م × 1.4 م |
|---|---|---|---|
| نظام مدفوع: | سلسلة أو صندوق التروس | نوع القطع: | هيدروليكي |
| ضمان: | سنتان | حياة: | أكثر من 10 سنوات |
| إبراز: | galvanized steel gutter roll forming machine,PLC control hydraulic cutting machine,down spout roll forming machine with warranty,PLC control hydraulic cutting machine,down spout roll forming machine with warranty |
||
| Type | Manual Type (Standard) | Hydraulic Type (Option) |
|---|---|---|
| Width | 500mm | 600mm |
| Capacity | Max 5 tons | 5-15 tons |
| Inner Diameter | φ450-550mm | φ450-550mm |
| Outer Diameter | φ1500mm | φ1800mm |
| Type | Mould Type |
|---|---|
| Blade Material | Cr12mov quenching and grinding |
| Frame Processing | Whole bottom frame grinding for high precision |
| Blade Processing | Wire-electrode cutting with specialized upper blade technology |
| Working Type | Hydraulic |
| Type | Manual | Auto (Option) |
|---|---|---|
| Length | 2 pieces | 6m or 12m |
| Component | Specification |
|---|---|
| PLC | Delta (standard) or custom request |
| Inverter | China brand (standard) or custom request |
| Touch Screen | Mcgs (standard) or custom request |
| Encoder | China brand (standard) or custom request |
| Voltage/HZ/Phase | 380v/50-60hz/3phase |
| Component | Specification |
|---|---|
| Motor | 3kw China brand or custom request |
| Pump | China brand or custom request |
| Solenoid Valve | China brand or custom request |
| Cooling System | Cooling fan |
