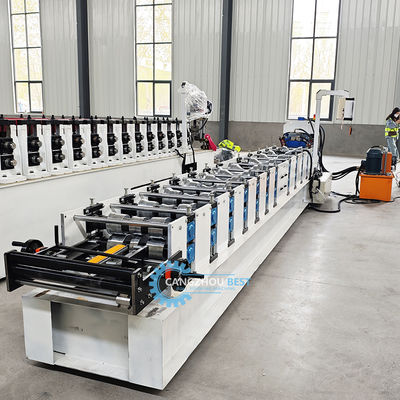

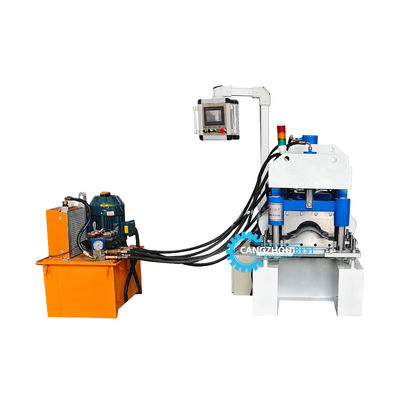

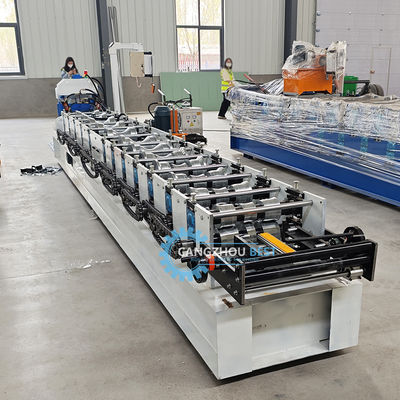

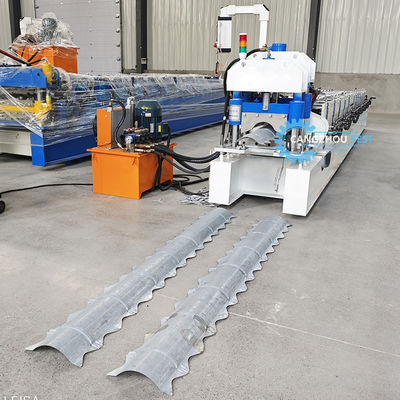

تفاصيل المنتج:
|
| الاسم: | آلة تشكيل اللكم والضغط الهيدروليكية لبلاط السقف | الكلمة الرئيسية: | ورقة التسقيف غطاء ريدج لفة آلة fomring |
|---|---|---|---|
| لون: | حسب الطلب | الجهد االكهربى: | حسب الطلب |
| قوة: | 5.5 كيلو واط | سرعة: | 4 م / دقيقة |
| قطر رمح: | 70mm | ||
| إبراز: | hydraulic ridge cap roll forming machine,roof tile pressing roll forming machine,ridge cap forming machine with warranty,roof tile pressing roll forming machine,ridge cap forming machine with warranty |
||
| Name | NO. | Unit |
|---|---|---|
| De-coiler | 2 | set |
| Forming machine | 1 | set |
| Cutting device | 1 | set |
| PLC control box | 1 | set |
| Hydraulic pump station | 1 | set |
| Production support table | 1 | set |
| Type | Manual type (standard) | Hydraulic type (option) |
|---|---|---|
| Width | 1250mm | 1500mm |
| Capacity | Max 5tons | From 5-15 tons |
| Inner diameter | φ508-610mm | φ508-610mm |
| Outer diameter | φ1500mm | φ1800mm |
| Item | Parameter detail |
|---|---|
| Processing Material | GI and PPGI |
| Material thickness | 0.25-0.8mm |
| Machine frame | 360#H steel, Adopt diagonal line welding, leveling instrument measurement to ensure high-precision |
| Forming stations | 10-22 stations (according to the profiles) |
| Machine rollers | High grade No.45 forged steel, plated hard chroming with thickness 0.05mm |
| Machine Shaft | φ60-70mm high grade No.45 steel after treatment |
| Machine bearings | China Haerbin bearing or SKF international bearing (option) |
| Driving system | 1 inch chain or gear box (option) |
| Machine power | 3kw-5.5kw (according to the profiles) |
| Machine working speed | 8-12m/min or 10-30m/min (option) |
| Type | Parameter detail |
|---|---|
| Blade material | Cr12mov quenching and grinding |
| Working | Hydraulic type |
| Main item | Parameter detail |
|---|---|
| PLC | Delta (standard) or according to your request |
| Inverter | China brand (standard) or according to your request |
| Touch screen | Mcgs (standard) or according to your request |
| Voltage/HZ/Phase | 380v/50-60hz/3phase |
