Flying Cutter High Speed Gypsum C Channel steel Profile Roll Forming Machine

شهادة
الصين Cangzhou Best Machinery Co., Ltd الشهادات
الصين Cangzhou Best Machinery Co., Ltd الشهادات
زبون مراجعة
أنا سعيد بشركة Cangzhou BEST Machinery Co.، Ltd. مصنع محترف للغاية وقابل لإعادة التصنيع. أنها توفر آلة ذات نوعية جيدة وخادم مبيعات جيدة ، ونتطلع إلى معيد التوجيه للتعاون معهم مرة أخرى.

—— مويو

Cangzhou BEST Machinery co. ، ltd's machine جيدة جدًا ، والإنتاج سريع ، وسرعة التسليم. شركة قوية جدا.

—— اوكتافيو

شكرا لحسن ضيافتك. شركتك محترفة للغاية ، سيكون لدينا تعاون لطيف في المستقبل القريب.

—— كريستيان

شركة جيدة جدا.من خلال اتصالات جيدة جدا تم حل جميع المشاكل ، راضيا عن شرائي.

—— سبينس

very professional factory, realiable, happy with them

—— Samuel

خدمة مبيعات جيدة ، ووقت التسليم هو اتصال سريع جيد.

—— علي

ابن دردش الآن

Flying Cutter High Speed Gypsum C Channel steel Profile Roll Forming Machine

Flying Cutter High Speed Gypsum C Channel steel Profile Roll Forming Machine
Flying Cutter High Speed Gypsum C Channel steel Profile Roll Forming Machine Flying Cutter High Speed Gypsum C Channel steel Profile Roll Forming Machine Flying Cutter High Speed Gypsum C Channel steel Profile Roll Forming Machine Flying Cutter High Speed Gypsum C Channel steel Profile Roll Forming Machine Flying Cutter High Speed Gypsum C Channel steel Profile Roll Forming Machine

صورة كبيرة :  Flying Cutter High Speed Gypsum C Channel steel Profile Roll Forming Machine

تفاصيل المنتج:
مكان المنشأ: الصين
اسم العلامة التجارية: BEST
إصدار الشهادات: CE
رقم الموديل: YX45
شروط الدفع والشحن:
الحد الأدنى لكمية: 1Set
الأسعار: 12500
تفاصيل التغليف: عارية
وقت التسليم: 45
شروط الدفع: T/T ، LC
القدرة على العرض: 10 مجموعات/شهور

Flying Cutter High Speed Gypsum C Channel steel Profile Roll Forming Machine

وصف
قطع التسامح: ± 2mm طول القطع: قابل للتعديل
نظام القطع: القطع الهيدروليكية مادة: فُولاَذ
اسم: آلة تشكيل اللفاف والمسار البعد: 7.5 * 1.2 * 1.5 م
التشفير: أومرون
إبراز:

high speed gypsum roll forming machine,C channel steel profile machine,stud and track roll forming machine

,

C channel steel profile machine

,

stud and track roll forming machine

Product Description:

With a cutting tolerance of ±2mm, you can be sure that your finished products will be of the highest quality and meet all of your specifications. The machine comes equipped with a hydraulic cutting system that allows for precise and efficient cutting of your materials.

The Stud And Track Roll Forming Machine is made from high-quality steel materials that are designed to withstand even the most rigorous of production environments. This means that you can rely on this machine to provide consistent and reliable performance day after day.

In addition, this machine comes equipped with an Omron encoder that ensures accurate and precise measurements every time. This means that you can be sure that your finished products will meet all of your specifications and requirements.

Overall, the Stud And Track Roll Forming Machine is an excellent choice for anyone who needs a high-quality C stud roll forming machine or C profile roll forming machine for their production needs. With its advanced cutting system, durable construction, and precision measurements, this machine is sure to meet all of your needs and exceed your expectations.



Features:

  • Product Name: Stud And Track Roll Forming Machine
  • Name: Stud And Track Roll Forming Machine
  • Encoder: Omron
  • Cutting Tolerance: ±2mm
  • Cutting Length: Adjustable
  • Dimension: 7.5*1.2*1.5m

This roll forming machine is also known as c stud roll forming machine or stud roll forming machine.



Decoiler
Loading capacity 1.5 T
Inner diameter 470-530 mm
Steel coil width 300 mm.According to your actual drawing.
Type Manual

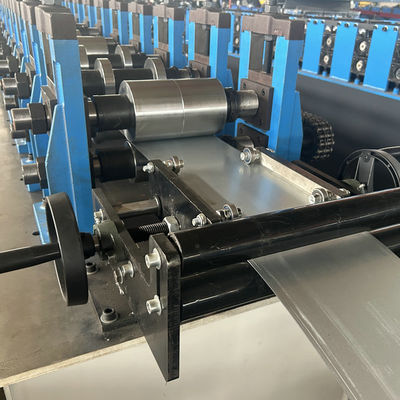

feeding table
It is used to control the width and position of the steel sheet.

The sheet is guided into the machine with correct position,

to make sure the panel is neat and parallel.

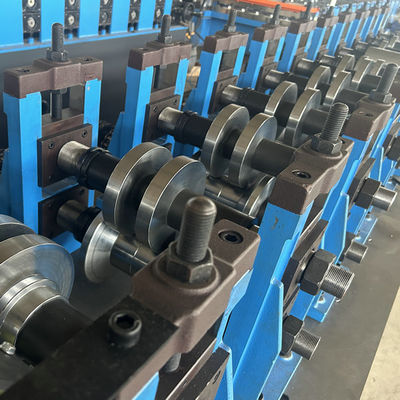

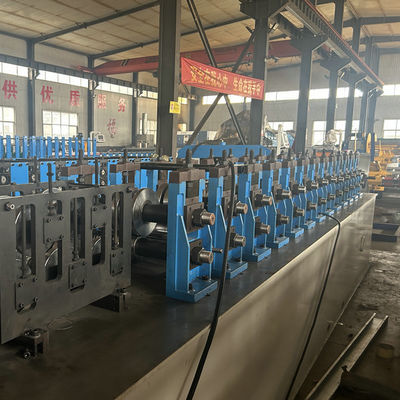

forming rollers
Material Cr12
Roller stations

11-16 stations.

According to your actual drawing

Cutting Device
Material of blade Cr12MOV, much better than normal Cr12 material
Hydraulic power 3kw



Flying Cutter High Speed Gypsum C Channel steel Profile Roll Forming Machine 0



Flying Cutter High Speed Gypsum C Channel steel Profile Roll Forming Machine 1



Flying Cutter High Speed Gypsum C Channel steel Profile Roll Forming Machine 2

Packing and Shipping:

Product Packaging:

  • The Stud and Track Roll Forming Machine is packed in wooden cases.
  • The size of the wooden case will depend on the size of the machine.
  • The machine is securely fastened and protected from damage during transportation.

Product Shipping:

  • The Stud and Track Roll Forming Machine is shipped by sea.
  • The shipping time will depend on the destination of the machine.
  • The machine is insured during transportation to protect against loss or damage.
