تفاصيل المنتج:
|
| اسم: | آلة تشكيل قناة الجبس الفولاذية المجلفنة C تصنع آلة تشكيل اللف الأوتوماتيكية الباردة | سمك المواد: | 0.6-1.6 ملم (235-345 ميجا باسكال) |
|---|---|---|---|
| رمح: | جودة عالية 45 # فولاذ مع معالجة حرارية. | تشكيل السرعة: | حوالي 20 م / دقيقة |
| نظام التحكم: | PLC | ||
| إبراز: | galvanized steel gypsum channel machine,cold roll forming machine for c profile,auto roll forming machine with warranty,cold roll forming machine for c profile,auto roll forming machine with warranty |
||

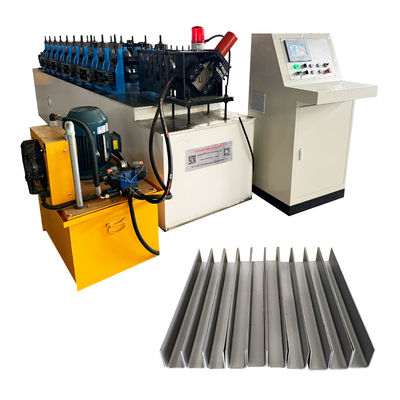

Galvanized Steel Gypsum Channel C Profile Making Cold Auto Roll Forming Machine
Technical specification:
| Stud, Track and Channel Roll Forming Machine | |||
| No. | Item | Specification | Optional |
| 1 | Suitable material | Type:Galvanized Coil, PPGI, Carbon steel Coil | |
| Thickness(mm):0.25-1.2 | |||
| Yield strength: 250 – 550MPa | |||
| Tensil stress( Mpa):G350Mpa-G550Mpa | |||
| 2 | Nominal forming speed(m/min) | 10-15m/min | Or according to your requirement |
| 3 | Forming station | 12statiins | |
| 4 | Decoiler | Manual decoiler | Hydraulic decoiler or double head decoiler |
| 5 | Main machine motor | Sino-German Brand | Siemens |
| 6 | PLC brand | Panasonic | Siemens |
| 7 | Inverter brand | Yaskawa | |
| 8 | Driving system | Chain drive | Gearbox drive |
| 9 | Rollers’ materail | Steel #45 | GCr15 |
| 10 | Station structure | Wall panel station | Forged Iron stationOr torri stand structure |
| 11 | Punching system | No | Hydraulic punching station or Punching press |

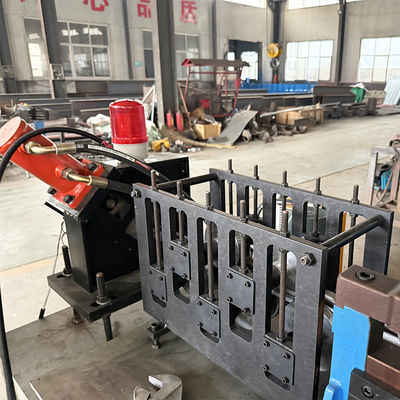

| 12 | Cutting system | Post-cutting | Pre-cutting |
| 13 | Power supply requirement | 380V 60Hz | Or according to your requirement |
| 14 | Machine color | Industrial blue | Or according to your requirement |
Main components of stud and track roll forming machine
| No. | Item | Quantity |

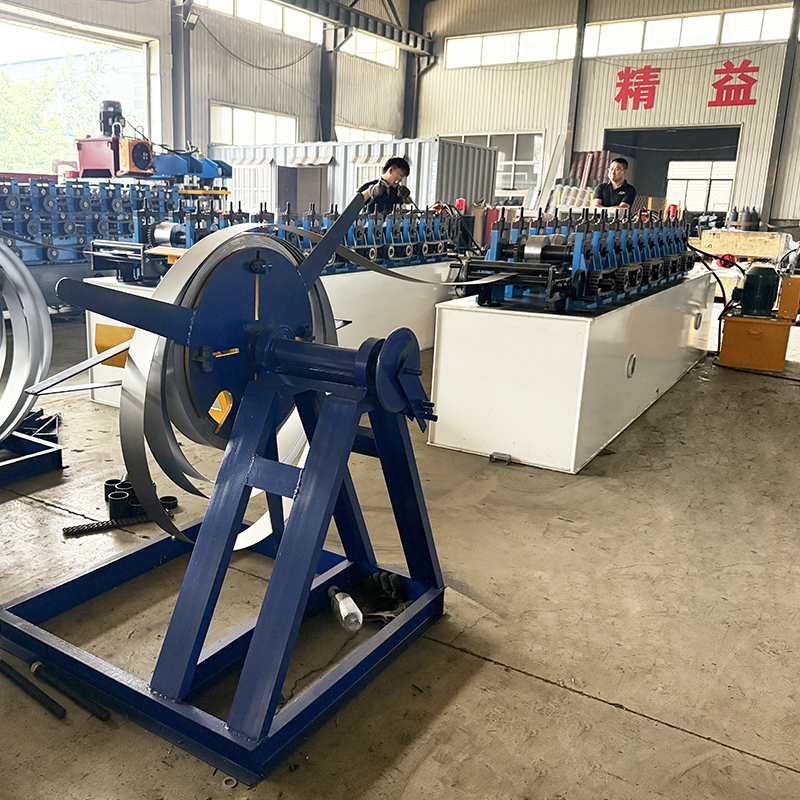

| 1 | Uncoiler | 1 Set |
| 2 | Guide Device | 1 Set |
| 3 | Roll Forming Machine | 1 Set |
| 4 | Hydraulic Station | 1 Set |
| 5 | Ran-out Table | 2 Sets |

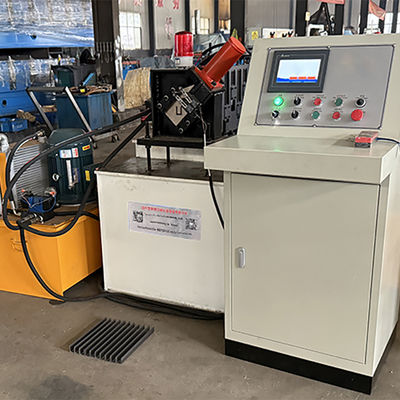

| 6 | PLC System | 1 Set |
