تفاصيل المنتج:
|

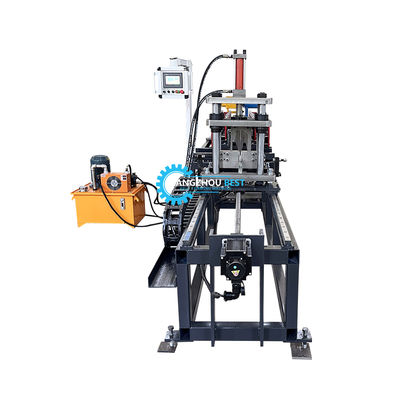

| اسم المنتج: | ملف تعريف الصلب المجلفن PLC Control Multi Sixe U Stud Cold Roll Machine | نوع اللكم: | هيدروليكي |
|---|---|---|---|
| نظام التحكم: | بلك | نوع القطع: | المنشار الطائر |
| ضمان: | سنتان | حياة: | 10 سنوات |
| إبراز: | galvanized steel U stud forming machine,PLC control cold roll forming machine,multi-size stud roll forming machine,PLC control cold roll forming machine,multi-size stud roll forming machine |
||
| Component | Quantity |
|---|---|
| Roll forming machine | 1 set |
| Hydraulic cutter | 1 set |
| Electrical control system | 1 set |
| Hydraulic system | 1 set |
| Normal run out table | 3 PC 1m*1m |
| Manual de-coiler | 1 set Max. loading 5 T |
| Parameter | Specification |
|---|---|

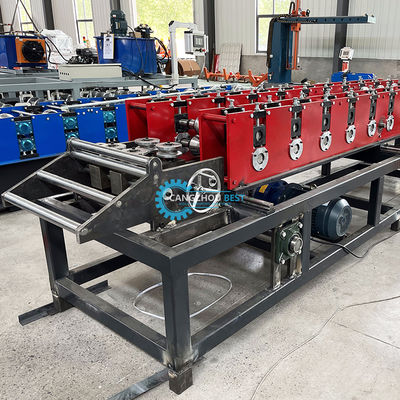

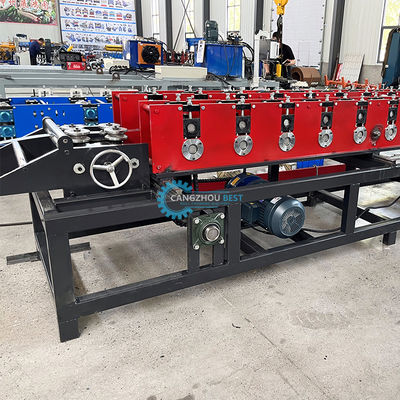

| Product Name | Stud and Track Machine |
| Machine Size | 5000mm × 1200mm × 1200mm |
| Machine Weight | About 4 T |
| Frame Materials | 350H steel |
| Forming Shaft Diameter | 60mm |
| Forming Shaft Material | 45# quenched and tempered material |
| Forming Roller | 45# Forging Hard Chrome Plating |
| Cutting System | Hydraulic Cutting |
| Main Engine Power | 3KW with cycloidal reducer |
| Forming Rows | 12 rows |
| Forming Speed | 8-12m/min |
| Pressing Thickness | 1mm |
| Effective Width | 50mm |
| Pressing Width | 300mm |
| Electric Control System | SIEMENS/Schneider |
| Pump Station Motor | 3 KW |
| Transducer | SIEMENS |
| Coder | Wuxi "rip" or "Xin Ya" |
| Switch | "CHINT" or "delixi" |
