تفاصيل المنتج:
|
| اسم المنتج: | 30x50 ملف تعريف الصلب U Track PLC Control Cold Roll Machine | نظام التحكم: | PLC |
|---|---|---|---|
| نوع القطع: | المنشار الطائر | ضمان: | سنتان |
| حياة: | 10 سنوات | المواد الأسطوانة: | Cr12 موف |
| مواد رمح: | 45#الصلب | ||
| إبراز: | 30x50 steel profile U track,PLC control roll forming machine,cold roll forming machine with warranty,PLC control roll forming machine,cold roll forming machine with warranty |
||

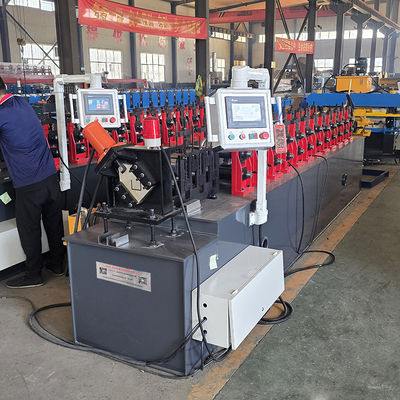

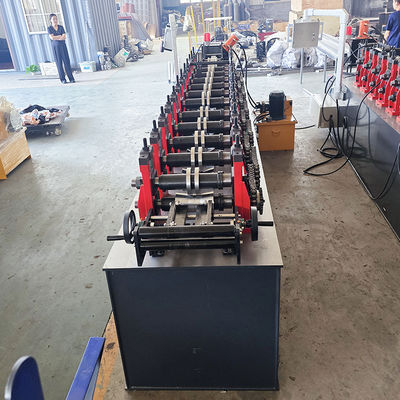

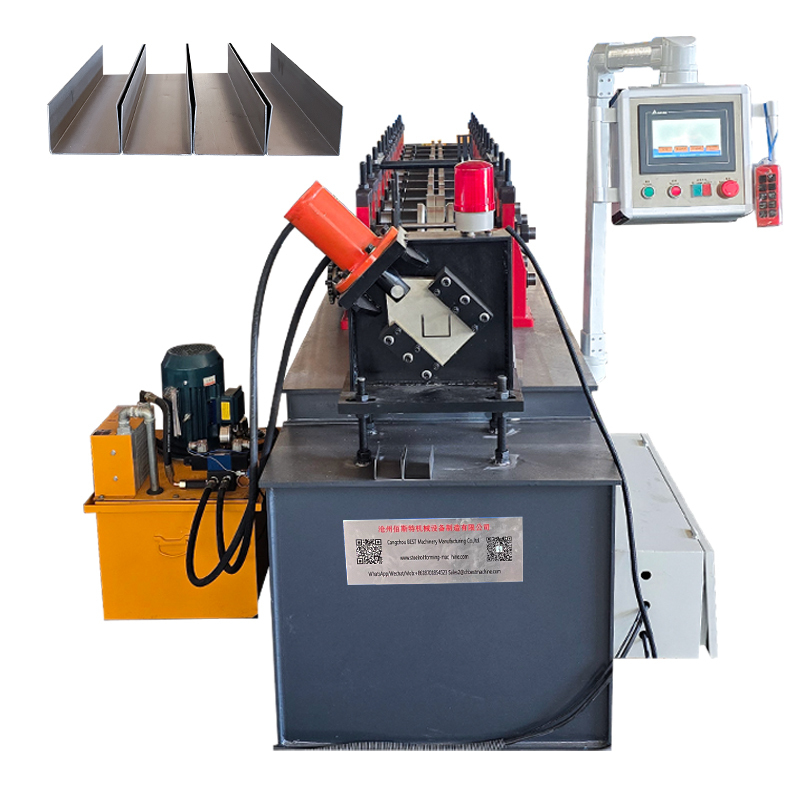

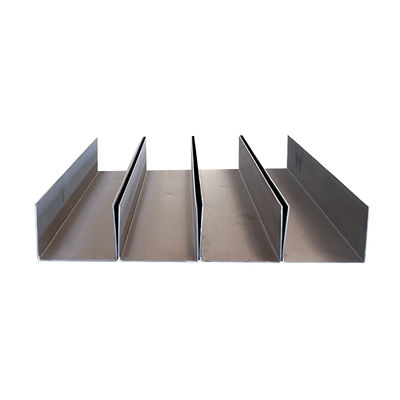

30x50 Steel Profile U Track PLC Control Cold Roll Forming Machine
Working flow
Decoiler------feeding------roll forming-------cut to length-----output table
Machine Components
| Name | Quantity(set) |
| De-coiler | 1 |
| Feeding guiding Device | 1 |
| Roll Forming Part | 1 |
| Hydraulic cutting Device | 1 |
| Computer control box | 1 |
| Hydraulic System | 1 |
| Run-out table | 1 |
Parameter
| Configurations | Manual Uncoiler ,Guiding Platform ,Coil Strip Leveler ,Main Body Of Roll Forming Machine, Electro-Motor, Hole-Punch Device ,Cutting Device ,Hydraulic Station ,PLC Control. |
| Control System | PLC Panasonic Inverter |
| Main Frame | 350mm H-Beam |
| Main Power | 5.5 kw |
| Pump Power | 3kw |
| Power Supply | 3-Phase,380V,50Hz |
| Forming Speed | 12-14m/min |
| Hydraulic Pressure | 18-20MPa |
| Forming Size | 60mm |
| Feeding Thickness | 0.6-1.2mm |
| Roller Station | 10 Stands |
| Roller Diameter | 60mm |
| Backboard Thickness | 16mm |
| Chain Size | 66mm |
| Cutter Standard | Cr12 |
| Roller Standard | Cr12 |
| Cr-Plating Size | 0.05mm |
| Overall Size | 9500×1400×1350mm |
| Total Weight | 6T |
| Working conditions | |
| 1.Machine size | 10m x 1.2m (L XW) |
| 2.Working size | 20m x 2.5m (LXW) |
| 3.Power supply | 8.5kw |
| 4.Frequency | 50-60HZ |
| 5.Wires/cables | 4-6mm²(length according to workshop) |
| 6. Labor cost | 2 workers |
| 7. Tools | Spanners and screwdriver |
| 8.Lift device | 3-5t forklift or crane |
