تفاصيل المنتج:
|
| اسم: | عشيق خط مزدوج ومسار الصلب المظهر الجانبي لفة البرد آلة مخصصة | نوع اللكم: | هيدروليكي |
|---|---|---|---|
| نظام التحكم: | PLC | حياة: | 10 |
| ضمان: | 2 سنة | نوع القطع: | المنشار الطائر |
| إبراز: | high speed drywall stud roll forming machine,non-stop track roll forming machine,25m/min stud and track former,non-stop track roll forming machine,25m/min stud and track former |
||

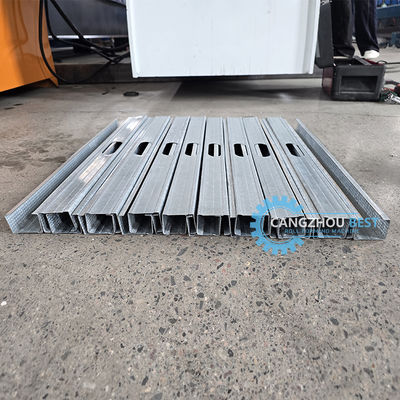

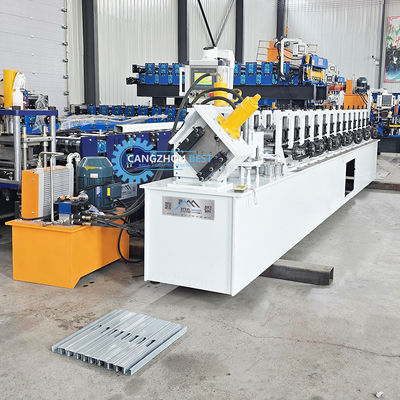

Double Line Stud&Track Steel Profile Cold Roll Forming Machine Customzied Machine

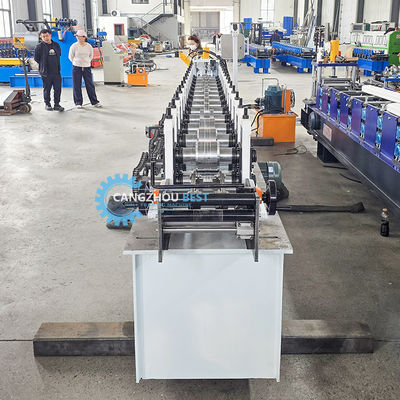

Rollers
High quality rollers will help to produce the beautiful
and high quality profile.That will satisfy your
customers.Using high qualiy thick shaft,
the strength is more durable.
The main body of the body without welding, all the use of cast steel, prevent the host body deformation.
PLC Control System
Usually we prodvide the Delta PLC control system,
but we can make that according to your need.
| Type | Manual type(standard) | Hydraulic type(option) |
| Photo | ||
| Width | 500mm | 600mm |
| Capacity | Max 5tons | From 5-15 tons |
| Inner diameter | φ450-550mm | φ450-550mm |
| Outer diameter | φ1500mm | φ1800mm |
| tem | Parameter detail | ||||||||
| Processing Material | GI and PPGI | ||||||||
| Material thickness | 0.25-0.8mm | ||||||||
| Machine frame | 360#H steel, Adopt diagonal line welding, leveling instrument measurement to make sure the final frame is high-precision | ||||||||
| Machine siding panel |
|
||||||||
| Forming stations | 12stations(according to the profiles) | ||||||||
| Machine rollers | high grade No.45 forged steel,plated hard chroming with thickness 0.05mm Processing way:cutting--drilling--CNC lathing--quenching--CNC lathing--chroming |
||||||||
| Machine Shaft | φ70-80mm high garde No.45 steel after treatment, | ||||||||
| Machine spacers | CNC lathing in high-precision | ||||||||
| Machine bearings | China Haerbin bearing or SKF international bearing(option) | ||||||||

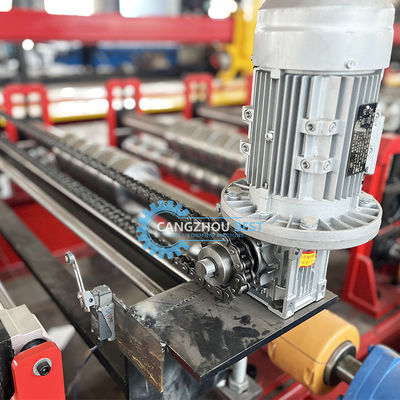

| Driving system | 1 inch chain or gear box(option) | ||||||||
| Machine power | 5.5kw-11kw(according to the profiles) | ||||||||
| Machine working speed | 8-12m/min or 10-30m/min(option) | ||||||||
| Machine adjust type | After machine installation, we will test it ourselves, compare with the profile drawing, the difference is controlled in 0.5mm |
Cutting
| Type | Mould type |
| Blade material | Cr12mov quenching and grinding |
| Frame processing | the whole bottom frame is grinding for high-precision |
| Blade processing | wire-electrode cutting, but the upper balde can not be straight. this is technology |
| Working | Hydraulic type |
Cangzhou Best Machinery Manufacturing co., LTD is specialized in the manufacture of high-end equipment cold bending forming equipment manufacturer,has a professional engineer for technical guidance.Engineers engaged in cold bending mechanical equipment design for more than 20years,has a wealth of design concept.Can provide users with a special type of design and manufacture.At the same time to sell equipment for installation,guidance,production,commissioning one-stop service.
Packing Detall
1*40 GP container ; main machine naked and fastened with iron wire in the container.
2.rollers were painted with oil and packed with plastic film.
Packing Detall
3.electrics devices be packed with wooden box.for Standard export packing.
4. All Components Fixed by steel wire with Container.
